Arylic A30+ 30W x 2 WiFi Mini Stereo Amplifier for Speakers with Spotify, AirPlay, Multiroom

Arylic

Selling Price:
Sale price₹ 0.00
Check Availability At

Description

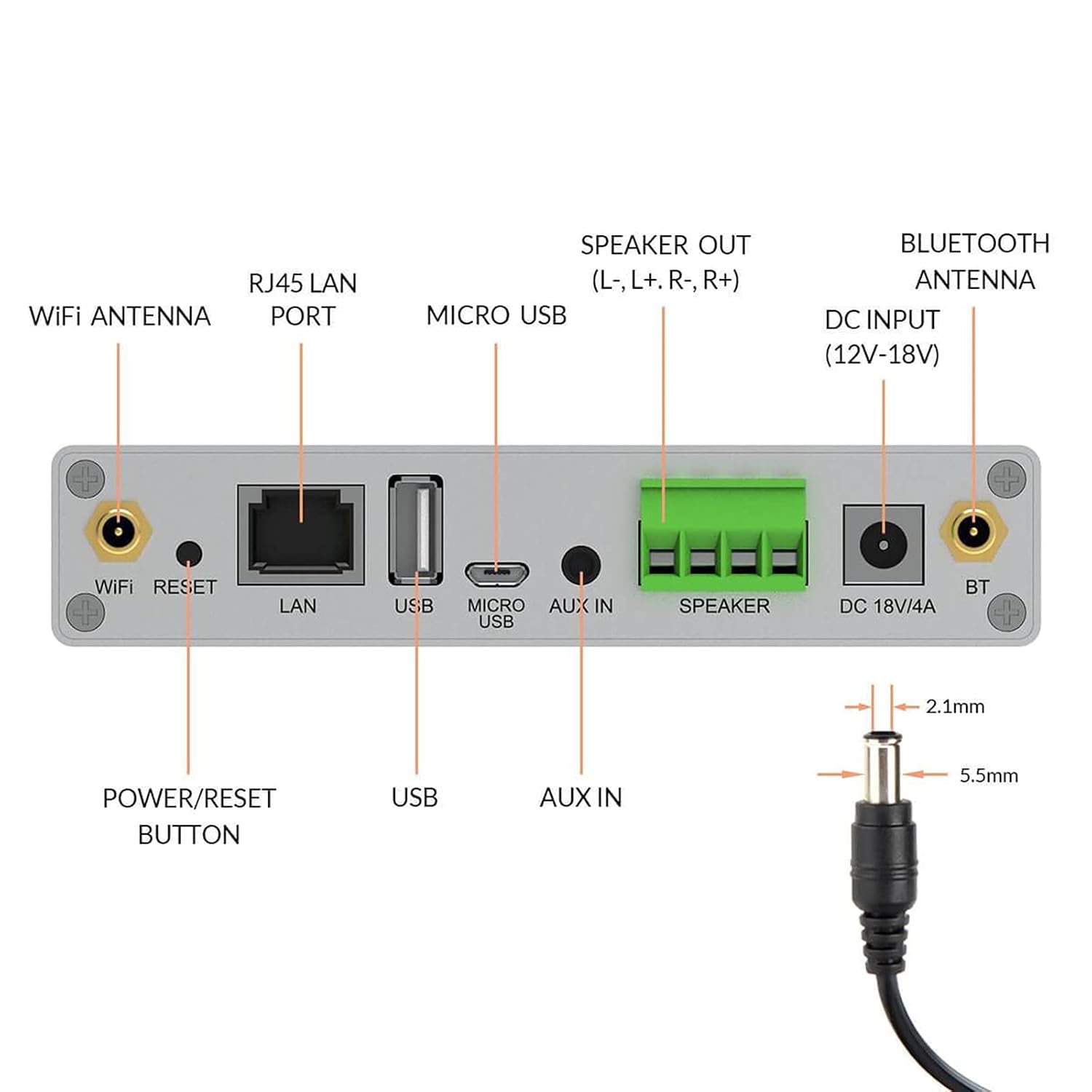

Connectivity
WiFi:
IEEE802.11 b/g/n 2.4G

Bluetooth:
5.0 SBC/AAC, 15M, BT Receiver

Wired Network:
Ethernet Single 10/100M RJ45

Power Input
12V-18V/DC in

Audio Input
Analog:
AUX (1Vrms)

Digital:
Micro USB Input

Audio Output
Analog:
AUX (1Vrms)
Speaker Out

Amplifier Chip
TPA3116

Speaker Power
2 x 35W @ 4Ω load at 18V
2 x 18W @ 8Ω load at 18V

Speaker Impedance
4-8Ω

USB Host
For USB pen drive/stick, 1000 songs limited

Frequency Response
20Hz to 20kHz

THD + N
<0.03% @ 1kHz/1W/4Ω

Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

Audio Format
Decoding up to 192kHz/24bits
Output up to 44.1kHz/16bits CD quality

Protocols
AirPlay, DLNA, UPnP, Spotify Connect, Qplay

NAS
Support NAS with DLNA support

General
Dimensions:
131.8mm*85.5mm*27mm (5.18in*3.37in*1.06in)

Weight:
500g

Working temperature:
0~40℃

Accessory
Power Supply
Screw Driver
RCA Cable
Remote
4Pin phoenix connector
External Antenna x2
User Manual

Power Button
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter pairing mode (WiFi mode);
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on

LED Indicators
⚪White-WiFi & network mode:
Flashing fast- device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected

🔵Blue- Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected

🟢Green- Line in mode
🔴Red- USB mode
🟡Yellow- connect to PC


Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
Cable: 1-month warranty only for manufacturing defects only

Arylic was founded by a team of experts with diverse skills in home audio and lifestyle technology. With over 10 years of design experience, the team decided to create their own line of high-quality, value-for-money products that are regularly maintained and updated.
