Description
xDuoo XD05T Dual Tube Portable DAC & Headphone Amplifier
Unleash the rich, analog warmth of vintage tube sound wherever you go with the xDuoo XD05T Portable DAC & Headphone Amplifier. Designed for audiophiles who demand uncompromising audio quality, this hybrid device blends the nostalgic charm of genuine 1960s vacuum tubes with cutting-edge technology, delivering an unparalleled listening experience.
Authentic Vintage Tube Sound
Experience the emotive and warm tones only vacuum tubes can provide. The XD05T features carefully selected 1960s miniature tubes that generate even-order harmonics, breathing life into your favorite tracks with their natural, analog charm.
Powerful Hybrid Circuitry
The XD05T combines the tonal richness of tubes with the driving power of transistors in a hybrid design. With an output of up to 556mW at 300Ω, it effortlessly powers high-impedance headphones, ensuring crystal-clear sound and robust performance.
Customizable Audio for Every Headphone
From sensitive in-ear monitors to demanding over-ear headphones, the XD05T adapts to your needs with three gain settings for optimal sound quality. Fine-tune the output to suit your collection and enjoy a tailored audio experience.
Enhanced Bass When You Need It
The “Bass On” feature boosts low-end frequencies, adding depth and impact to your music without overpowering the mix. Perfect for bass lovers who crave extra punch.
Portable Yet Powerful
Built for life on the move, the XD05T’s internal battery keeps the music going wherever you are. For a more robust setup, switch to desktop mode with DC power for enhanced performance.
Seamless Connectivity Options

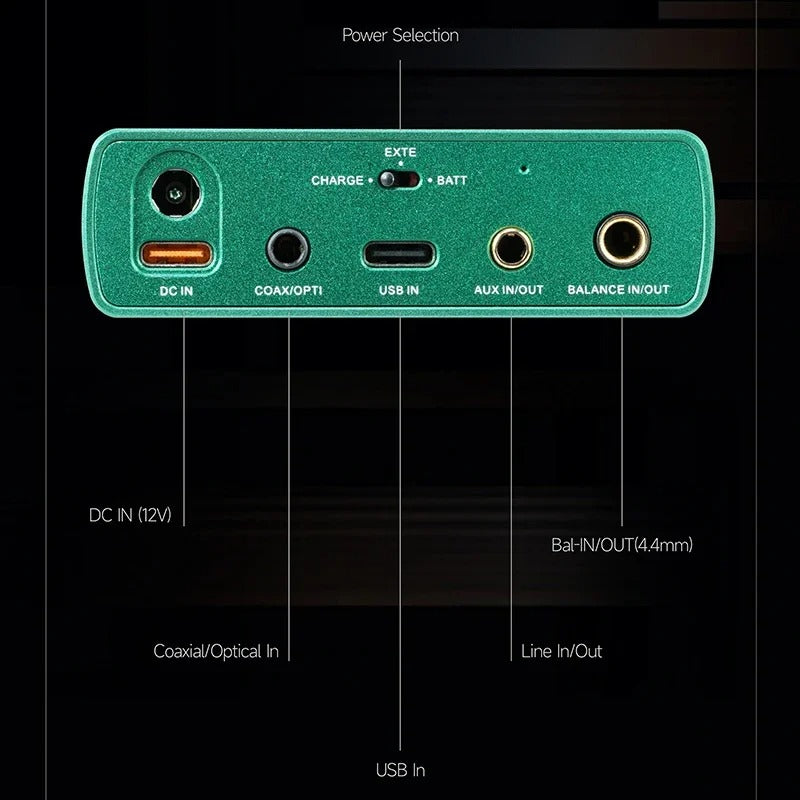

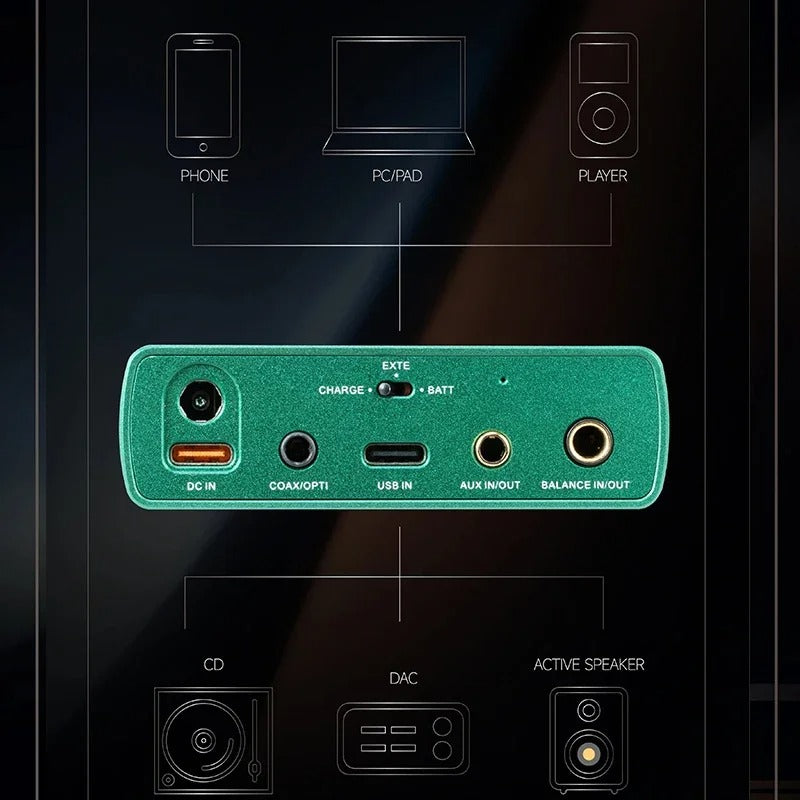

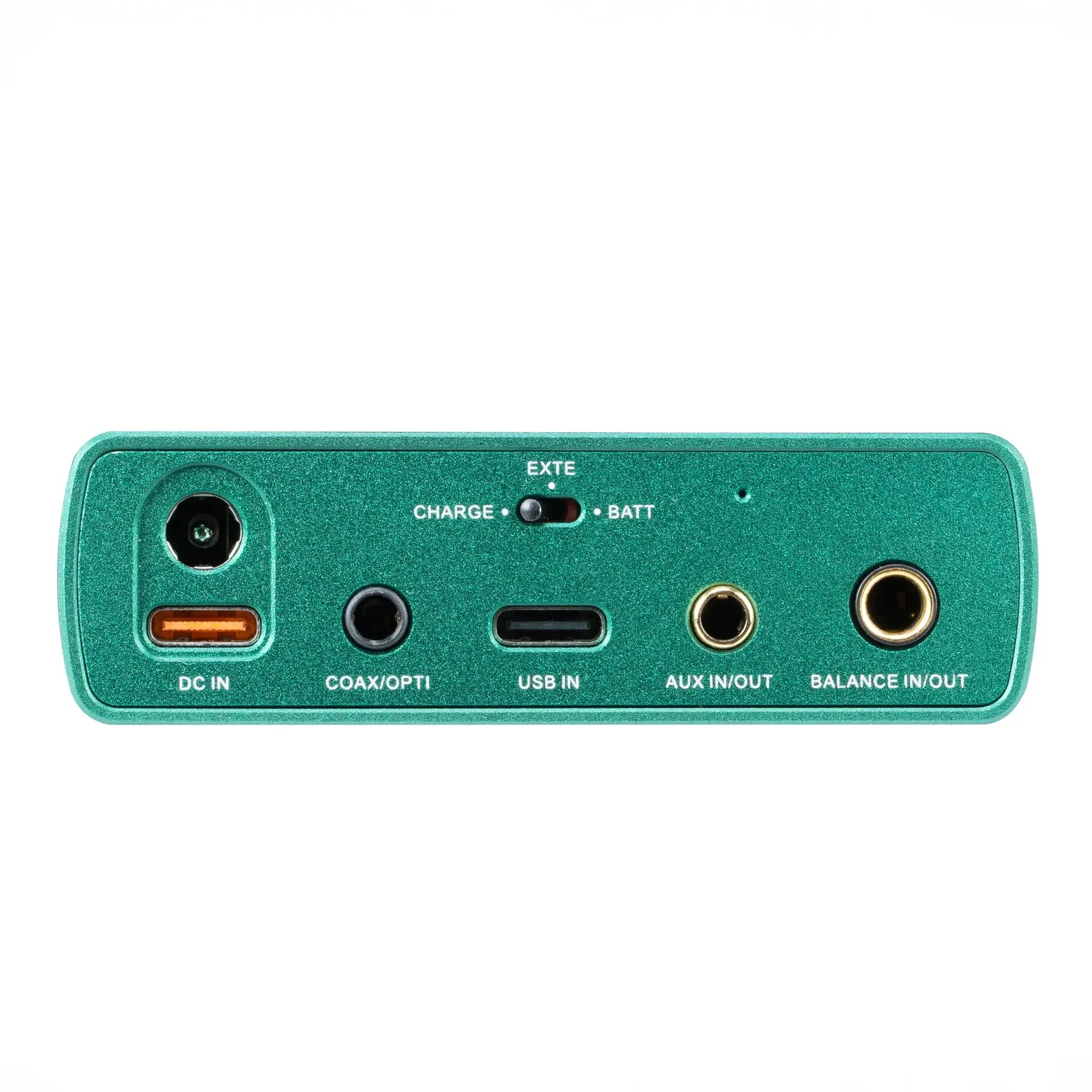

Stay connected with versatile input and output options, including USB, Bluetooth 5.1, AUX, SPDIF, and balanced connections. The XD05T’s eight usage modes ensure compatibility with smartphones, tablets, PCs, and audio players.
Precision Volume Control
Enjoy fine-tuned audio with 99-step digital volume adjustment, allowing precise control even with the most sensitive IEMs.
Hi-Res Audio Support
The XD05T supports high-resolution audio formats like PCM 32-bit/768kHz, DSD512, and MQA 8X, delivering studio-quality sound that captures every detail.
Key Features:
- Genuine 1960s vacuum tubes for warm, analog sound
- Hybrid circuitry combining tube richness and transistor power
- High output power: up to 1,500mW at 32Ω (balanced)
- Three gain levels for versatile headphone compatibility
- Bass enhancement mode for deep, impactful lows
- Portable with optional desktop mode via DC power
- Multiple input/output options: USB, Bluetooth 5.1, AUX, SPDIF
- Supports advanced audio formats: PCM, DSD, and MQA
- 99-step digital volume control for precision adjustments
- Balanced and unbalanced outputs with low distortion and high signal-to-noise ratio
Elevate your listening experience with the xDuoo XD05T Portable DAC/Amp—your gateway to true high-fidelity audio.
DAC: (2x) ESS ES9039Q2M
USB Chip: XMOS XU316
Format: PCM 16-32Bit/44.1k-768kHz, DSD64-512, MQA 1-8X
Bluetooth: QCC5125, Bluetooth 5.1
Bluetooth Format: SBC,AAC,PTX,APTX LL, APTX HD, LDAC
Battery: 3.7V / 6000mAh
Battery Life
4h USB, 4h S/PDIF
4.5h AUX
Charging Time (fast/slow): 3.5 hrs/10hrs
Size: 6.6" x 3" x 1"
Weight: 1 lb
Unbalanced Output:
Output Power
32Ω@750mW (THD+N<5%)
300Ω@83mW (THD+N<5%)
Output Impedance: <0.2Ω
Peak Voltage: 15Vp-p (TURBO)
Frequency Response: 20Hz-20KHz (±0.5dB)
Crosstalk: ≥75 dB
THD+N: 0.5%
SNR: ≥114dB
Balanced Output:
Output Power
32Ω@1500mW (THD+N<5%)
300Ω@565mW (THD+N<5%)
Output Impedance: <0.2Ω
Peak Voltage: 26Vp-p (TURBO)
Frequency Response: 20Hz-60KHz (±0.5dB)
Crosstalk: ≥105 dB
THD+N: 0.5%
SNR: ≥116dB
AUX Output:
Output Level: 2.0V
THD+N: 0.00065%
SNR: ≥120dB
Crosstalk: ≥100dB
BAL-LO:
Output Level: 4.0V
THD+N: 0.00065%
SNR: ≥124dB
Crosstalk: ≥100dB
In the Box
xDuoo XD05T
USB-C to Lightning dongle
USB-C to C dongle
USB-C cable
USB-A adapter
3.5mm adapter
1 Year Warranty card
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
xDuoo is a China-based brand that specializes in developing high-end audio products. They offer a wide range of products including portable DACs, amplifiers, audio players, headphone amps, and much more. The brand is known for its unique designs and excellent sound quality. They aim to provide customers with the best audio experience possible, with attention to detail in both aesthetics and sound performance.
