Description
- Synchronous Clock Implantation Technology
- Independent R&D of DSP Digital Filter
- K2 Clock Synthesizer Built-in
- Bluetooth 5.0/USB/Coaxial/Optical/IIS
- Dual ES9038PRO Chips
- Full Funtion Rmote Control

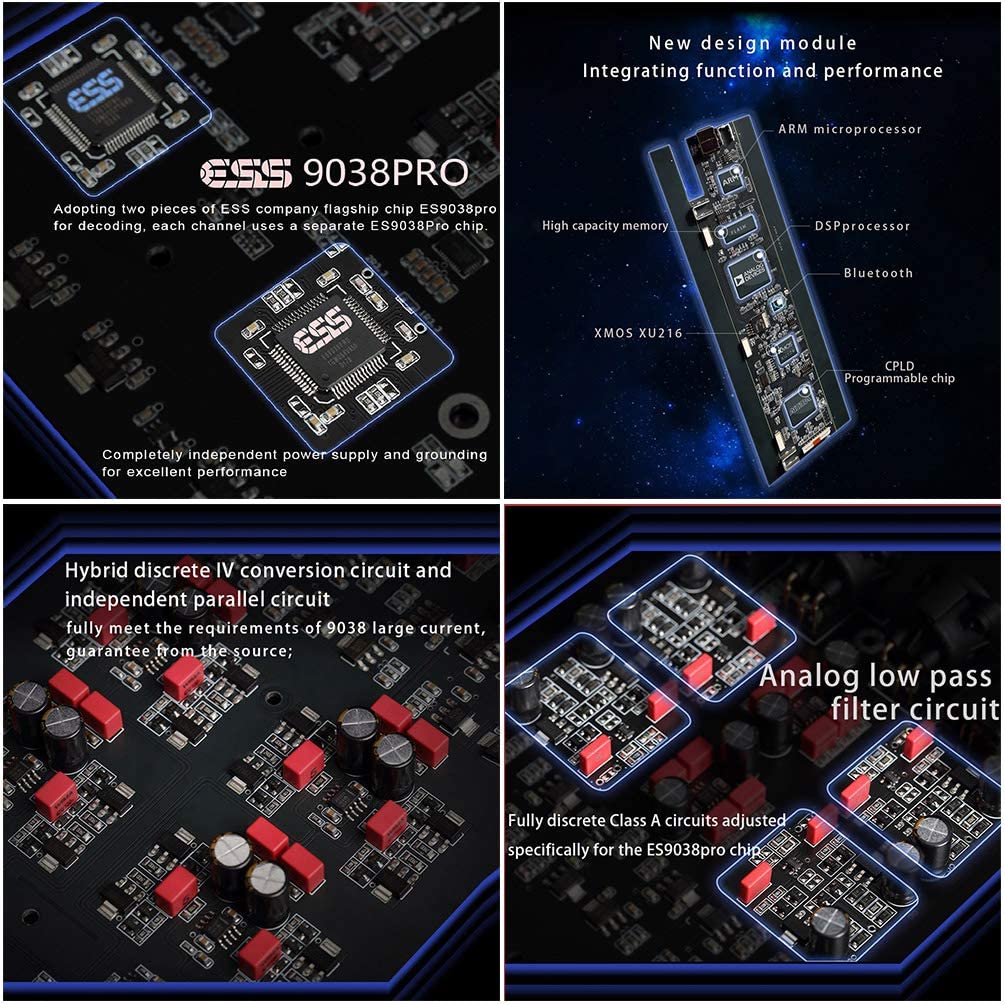

X26 Pro uses two ESS chips ES9038PRO for dual mono audio digital-to-analogue conversion. Each channel uses a separate ES9038Pro chip, and each channel is a completely independent power supply and grounding for best performance.

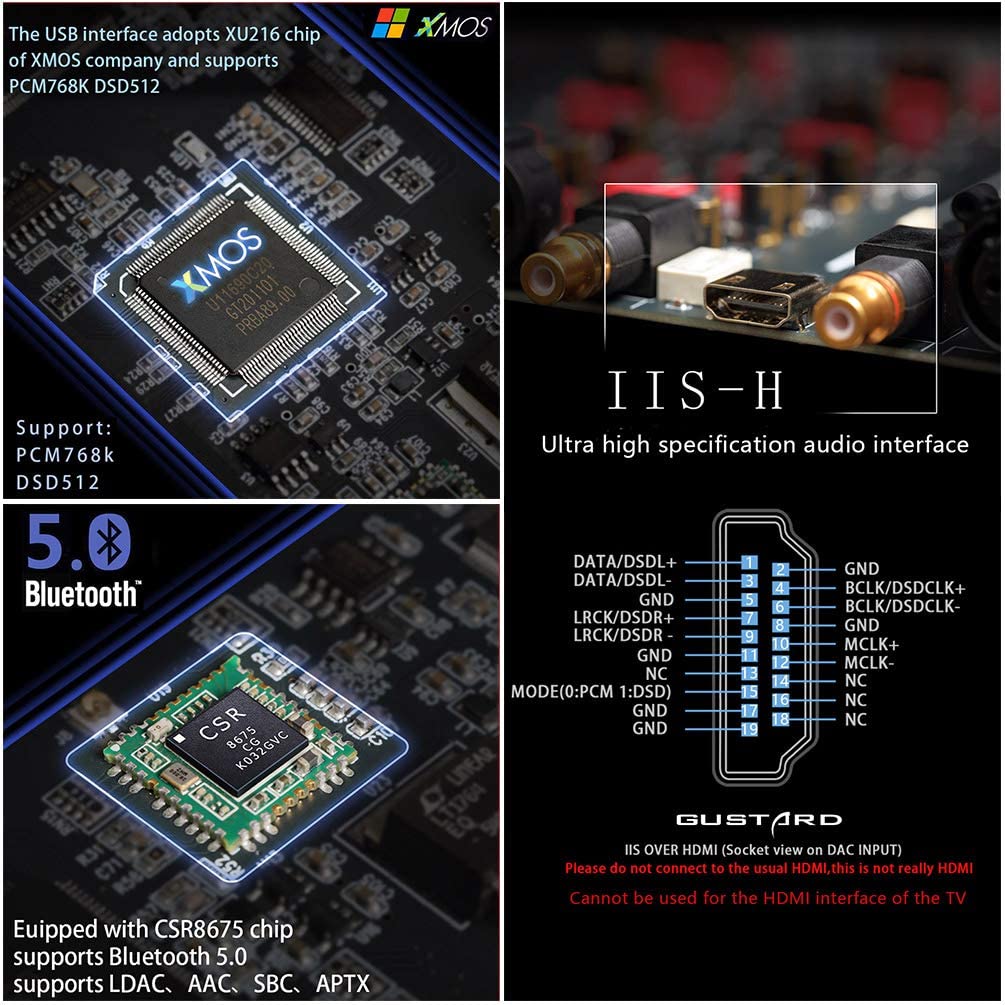

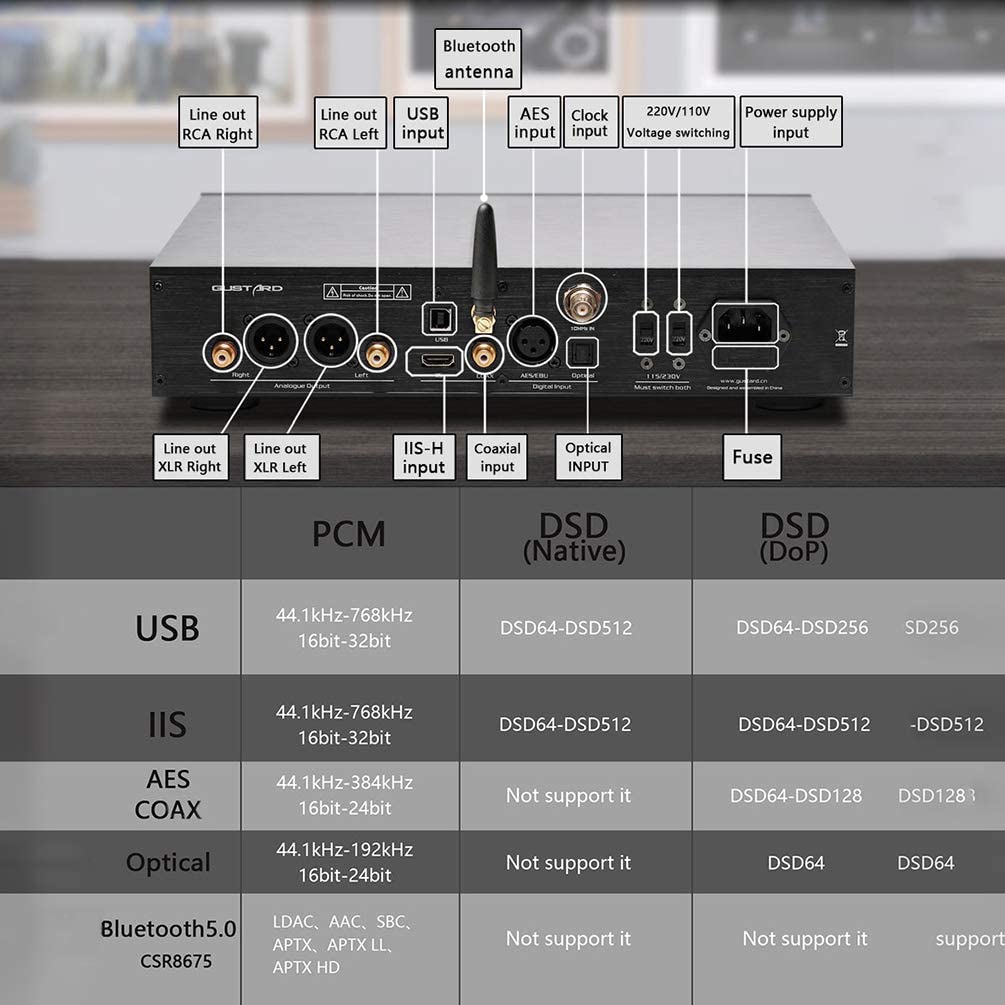

Various Input and Output Mode: Gustard X26 Pro with USB/IIS/AES/Coaxial/Optical/Bluetooth 5.0(CSE8675)input mode; with RCA and XLR out to meet different needs.
Ultra-low Noise K2 Clock Synthesizer: Abandon the front-end clock source, DAC only uses local femtosecond clock or external 10M constant temperature clock source synthesis as the main clock. Therefore, the impact of the front-end signal source clock performance on the decoding link is greatly reduced.USB/IIS/AES/Coax/Opt/BT interface can also enjoy the performance improvement brought by the synthesizer.
CPLD Programmable Logic Chips: Self-constructed digital integrated circuits with logic functions, clock management, 2nd PLL, digital shaping, DOP decoder, PCM/DSD depop switch and other exclusive technologies have laid a solid foundation for excellent sound quality.
DSP Digital Filtering: The solution is a high-performance digital filter solution developed on the Analog Device SHARC digital audio dedicated DSP platform.It is equipped with a self-developed high-performance anti-aliasing noise algorithm, which achieved better sound quality performance.
Sample rate supported by digital input channels:
COAX : PCM 16-24bit/44.1-192kHz; DSD DOP64
AES : PCM 16-24bit/44.1-192kHz; DSD DOP64
OPT : PCM 16-24bit/44.1-192kHz; DSD DOP64
USB : PCM 16-32bit/44. 1-768kHz ; DSD DOP64-DOP256; NATIVE DSD: DSD64-DSD512
IIS : PCM 16-32bit/44. 1- 768kHz; DSD DOP64- -D0P256; NATIVE DSD: DSD64 -DSD512
BT Bluetooth 5.0 : PCM LDAC, AAC, SBC, APTX, APTX LL, APTX HD and other high frequency
encoding, LDAC can achieve 24B / 96K high code transmission
*USB input supported operating system: Win7 SP1/Win8/Win10 32-64bit; mac0S; Linux
Analog output performance :
Amplitude frequency response: 20- 20kHz /±0.1dB .
DNR: >128dB
Crosstalk: -140dB@1kHz .
THD+N: ≤0. 0001%@1kHz
IMD: <0. 0006% @-1dBFs
RCA 0utput level: 2. 5Vrms (Volume 00dB)
Output impedance 100 ohms
XLR Output level: 5Vrms ((Volume 00dB)
Output impedance 100 ohms
Other specifications :
AC Power supply: AC 115V/230V 50/60Hz
Power consumption: <60W

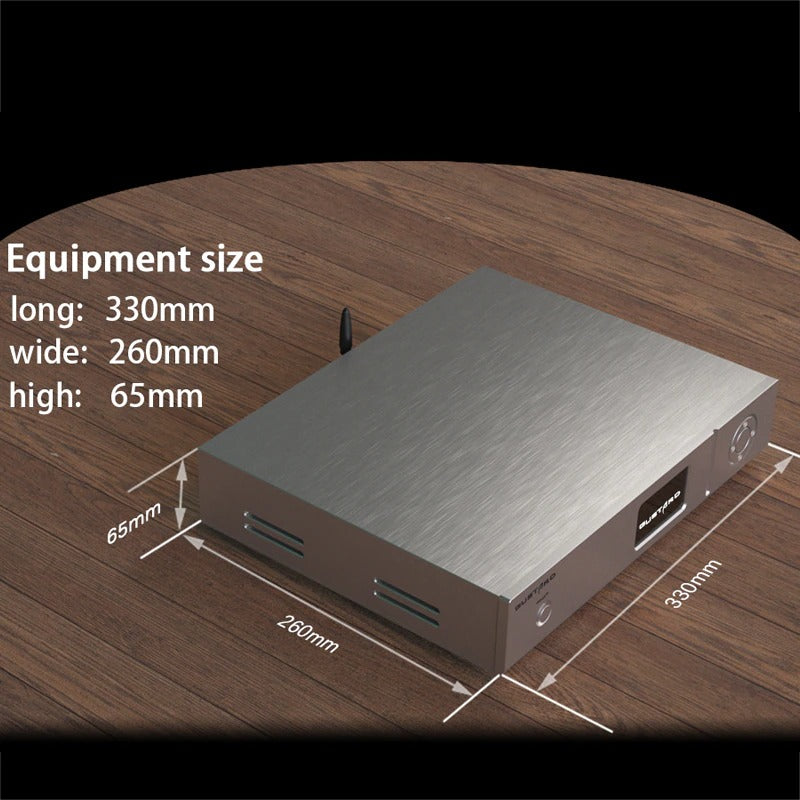

Dimensions: Width 330mm * Height 65mm * Depth 260mm (Excluding protrusions)
Weight: 7Kg (including packaging)
Warranty Period: 2 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
Gustard is a company dedicated to research and development, aiming to offer high-performance audio desktop-grade DAC and amplifiers at affordable prices. Their products are ideal for music lovers who seek quality audio.
